Endodontic Apex Locator

Actto Root

Using the result if numerous clinical trials and verification tests as a base, DNHmedtech created Smart Process, a next-generation Apex Locator compatible with diverse tooth forms, and that provides superior accuracy in detecting the root apex.
At the biologically crucial root apex – the Zone of Precision – the Actto Root is able to provide a clear, accurate image of the file tip’s location on its LCD panel.

  • High-precision root canal measurement generated by using Smart Process
  • Auto-detects the apex accurately in any conditions, dry or wet
  • A stylish and ergonomic design
  • Always immediately ready for use and automatic calibration for the system failures
  • Three different acoustic signals depending on the location of the file tip, ensuring precise procedures
  • The four-color LCD panel allowing clinicians to accurately and instantly monitor procedure progress
  • Instantly upgradable to a preparation system
  • Auto power off for saving battery

Next-Generation Smart Process

DNHmedtech Smart Process combines two advanced technologies to accurately analyse signals.
Actto Root Smart Process technology removes virtually all signal interference from the root canal itself to precisely detect the location of apex.

  • Actto Root Smart Process alternates between two separate frequencies to take measurements.
    By reducing the noise that interferes with signal analysis, it generates a high-precision wave system that does not require a filtering circuit.
  • Actto Root Smart Process uses the whole wave system to analyze the extracted frequency.
    This produces steady measurement analysis even under varying conditions in the root canal while retaining a constant link to file insertion progress.
Catalogue

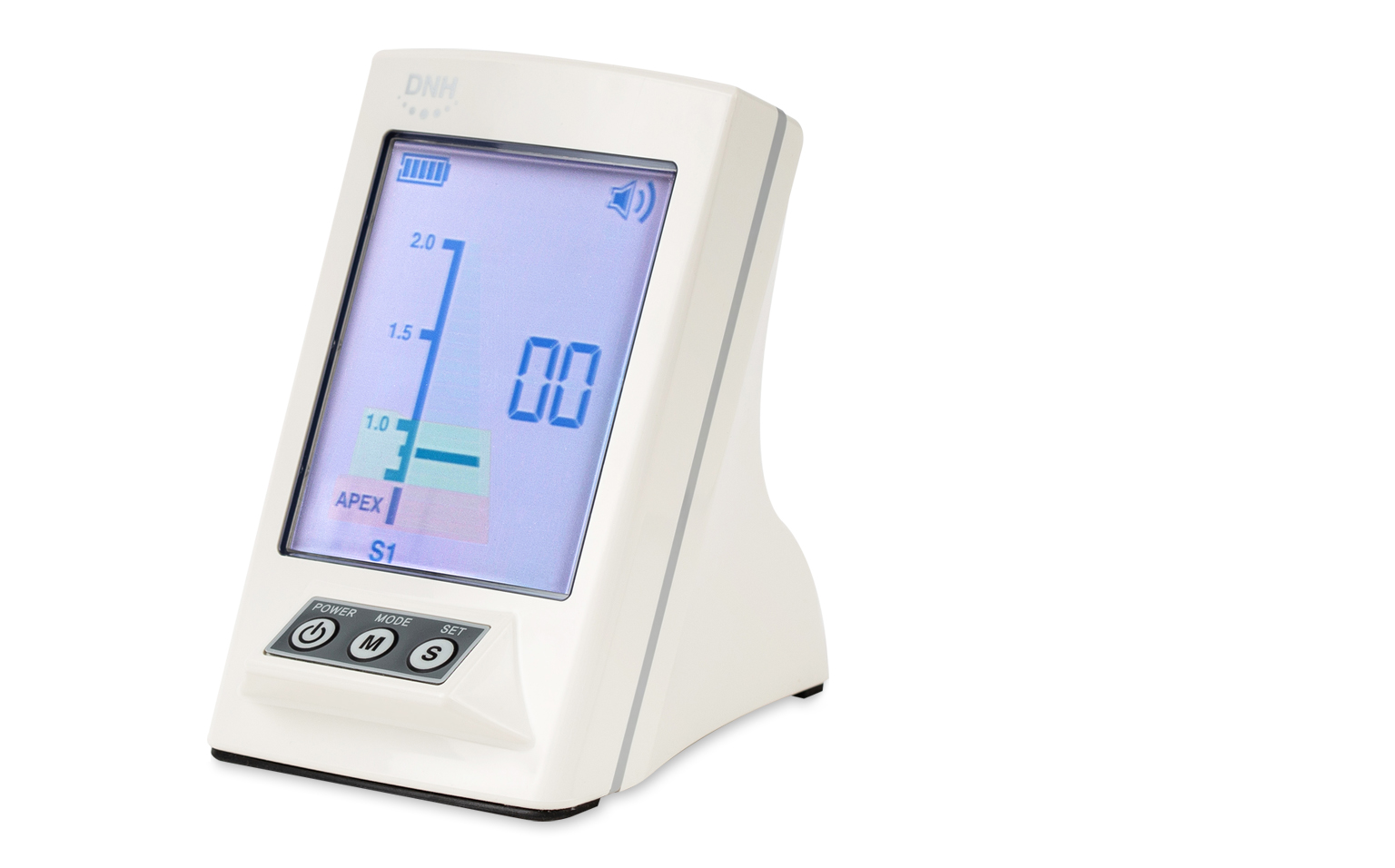

The four-color LCD screen

Measurement Begins

When the file is inserted into the root canal, the position of the bar graph reflects the position of the file as it descends, Display read step number remain until the base flash line and the alert sound (08~) slowly.

Root Apex Area

As the tip of the file approaches the root apex, (05~) the bar graph turns green, and the audio alert sound (04~) speeds up in tempo to notify the user that the file is entering the Zone of Precision.

Minor Apical Diameter Area

When the tip of the file reaches the minor apical diameter, the bar graph display reads 00, and the alert sound changes to a continuous tone.

Overshooting the Apex

If the tip of file passes the apex, the unit issues continuous alert sound while the word APEX appears in red.

layout styles

Stylish and ergonomic body

  • The Actto Root can quickly be set up and used in virtually any environment.
    The LCD panel is pitched at the ideal angle that allows clinicians to easily, and without distraction, monitor conditions ensuring safe and smooth root canal procedures.

Actto Root specifications

Power Supply for 1.5 V AA (LR06 or R06) batteries
Continuous use Approx. 60 hours
Dimension W86 × H120 × D162(mm)
Weight 278 g (unit without batteries)

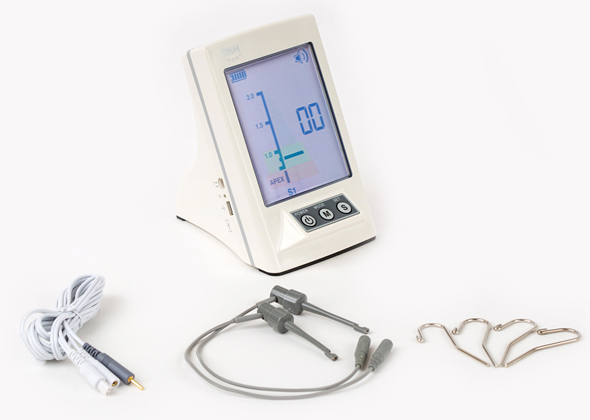

Included Components

Control Unit 1
Probe (1.8 m) 1
Contrary Electrode 4
File Clip 2
AA 1.5V battery 3
User’s Manual 1
