Vivid pulp / Vivid life
Pulp Tester vividen
DNHmedtech provides technology with improved performance for quick and easy diagnostic.
vividen
The vividen, a state of the art electrical digital pulp tester with greater efficiency, greater accurate and greater convenience than the common dental diagnostic.
The vividen is applied for
- Identification of the pulp vitality
- diagnostics of the pulp status
- observation of healing process
- differential diagnostics

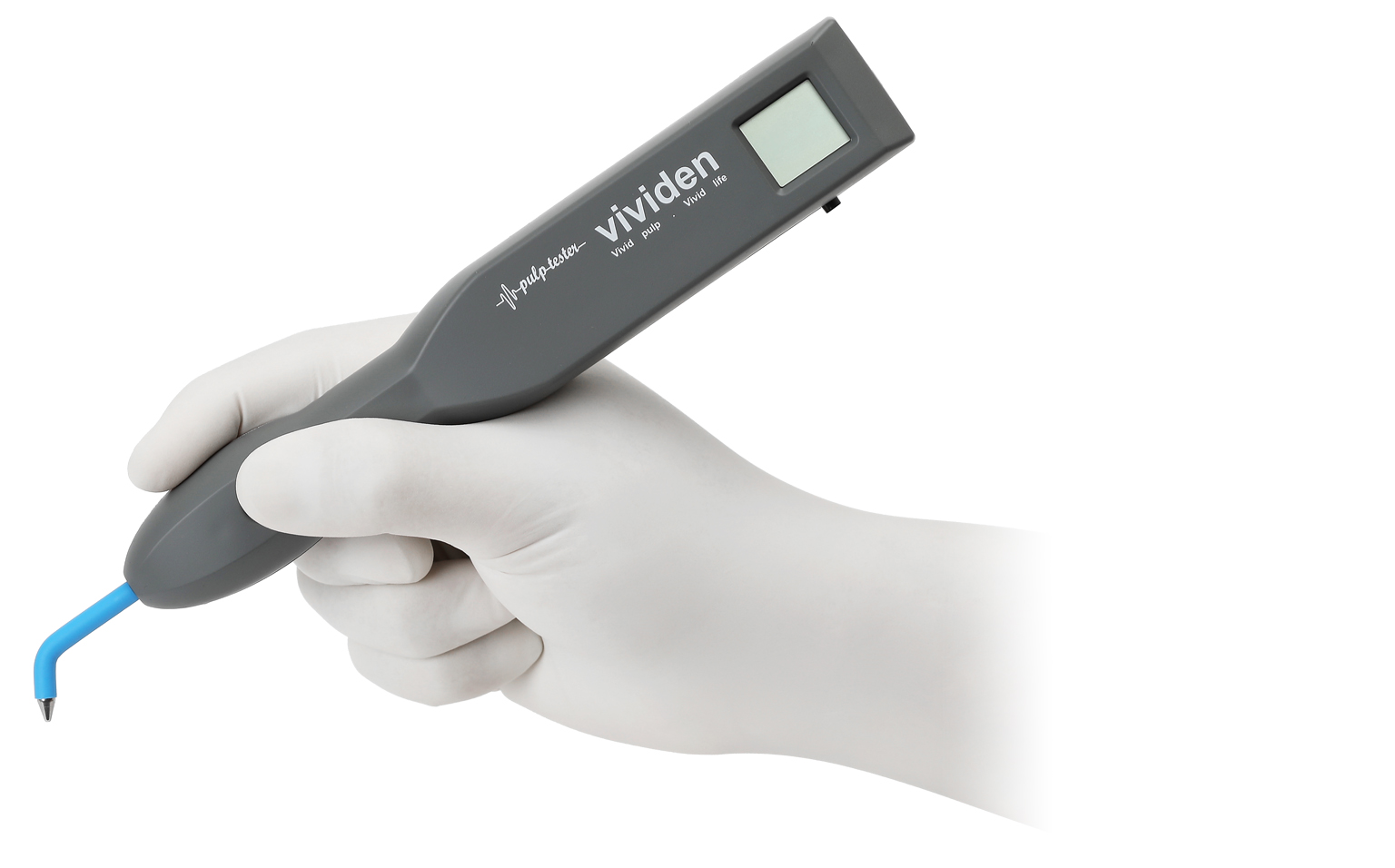

Wireless diagnostic
- Contact with vividen’s metal sheath
- Touch patient’s chin or cheek with free hand
Using Lip-clip
- If gloves are being worn
- Place Lip-clip on the patient’s lip

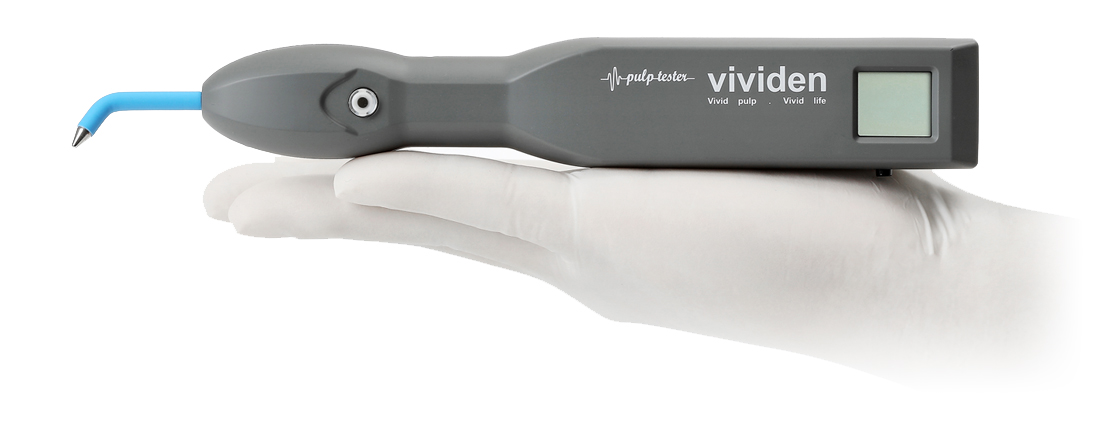

The vividen
vividen unit specifications
Length | 190 mm |
Height | 24 mm |
Width | 32 mm |
Weight | 91.5 g(unit) |
Output Frequency | 160-640 Hz |
Output Step | 00-60 |
Input Power | DC 9 V(Alkaline Battery) |
Electrical Classification | Class 1, Type BF |
Included Components
vividen unit | 1 |

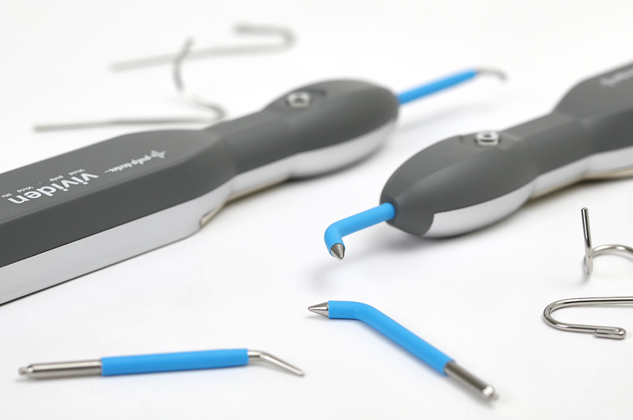

Probe Set(4 type) | 1 |
Lip Clip Set(2 type) | 2 |
Wire | 1 |
Alkaline Battery(9 V) | 1 |
User’s Manual | 1 |
